Tryout

Tryout

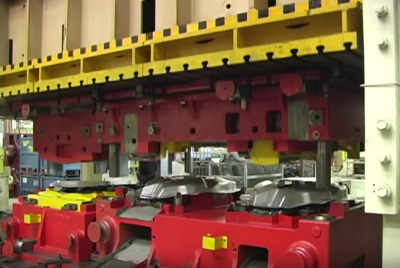

After completing the build of your die, our tryout facilities allow us to ensure that it meets the highest standards of accuracy based on your needs. We will ensure that your dies meet all of your requirements before putting them into full production and delivery. Our tryout capabilities include presses of up to 4 000 tons and a 100 x 180 bed size.

With our laser capabilities, we can put a small run of your part into production for trim and adjust a part and test it to quickly and precisely adjust it based on our tryout results.  With our commitment to quality assurance, you can count on CET to get your die produced correctly down to the smallest measurements.

Our tryout capabilities include:

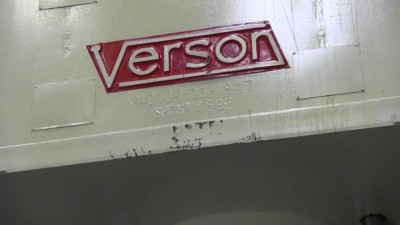

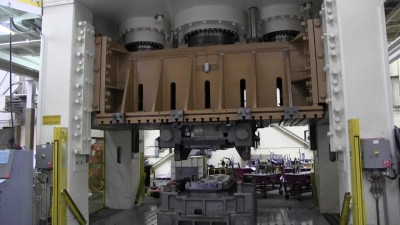

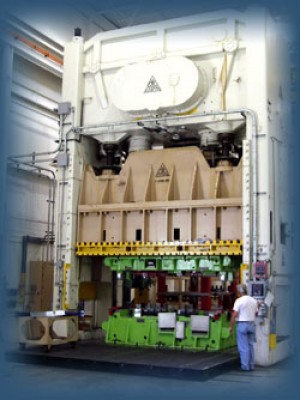

  • 1 4000 ton, Bed Size 184 x 108 x 65 ,  Shut Height 42 "  Verson hydraulic Press upgraded and modified to simulate any velocity curve as per mechanical press.

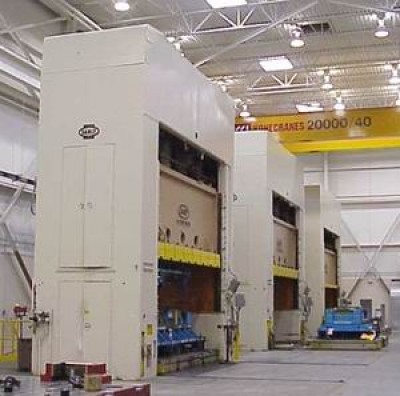

  • (3) 1000 Ton Danly Straight Sided Presses Size 180 x 96 x 84 SH, 36" Stroke

  • 1 1000 Ton Bliss Straight Side Double Crank Press - Model SE 2-1000-132-60 Bed Size - 60 x 132 - Shut Height 54" - Stroke 30". (PRS02)

  • 1 900 Ton Clearing Straight Side Single Action Press – Model F4-900-180 Bed Size – 180 x 102. (PRS07)

  • 1 600 Ton Clearing Straight Side Single Action Press - Model F4-600-180S - Bed Size - 100" x 180" - Shut Height - 80" - Stroke - 37". (PRS01)

  • 1 Model #4E-600 - 20 x 100 Hamilton Press - 600 Ton Capacity - Bed Size 60 x 100 - Shut Height - 48" -Stroke - 16". (PRS03)

  • 1 Model #54600 - 66 x 96 Hamilton Press - 600 Ton Cap. Bed Size 66 x 96 - Shut Height - 54" - Stroke - 20". (PRS04)

  • 1 300 Ton Blow Hydraulic Press (Spotting Type) Twin Cushion.(PRS06)

  • 1 Aida Model No. EDM 20 Module Type Straight Sided Double Crank Press - 220 Ton Capacity - Bed Size - 60" x 40" - 12" Stroke. (PRS05)
